Mytek Brooklyn+ DAC
PCM up to 384kHz, 32 bit, DSD256 with simultaneous formats on output, including USB.

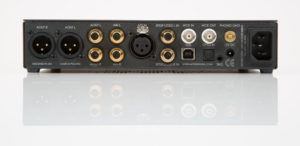

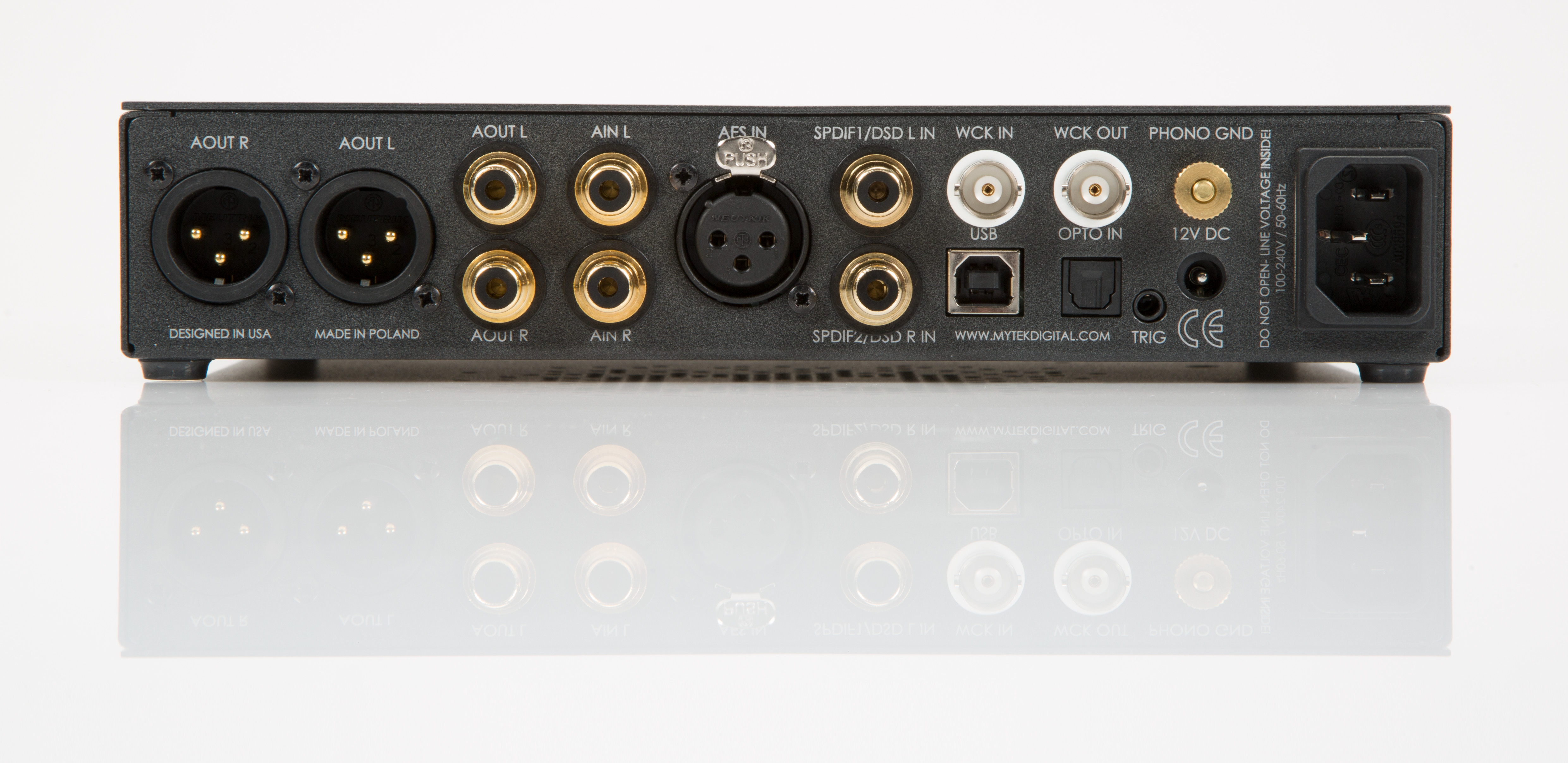

Transparent line level (electronic) or passive nickel transformer with saturation control, mic or phono input (optional plug in cards). Inputs accessible from both back and front panels.
AES, SPDIF, ADAT/Toslink (up to 192k, 24 bit), SDIF DSD, USB2 Class2 (All formats, up to 32 bit) (No drivers for Mac or Linux, bidirectional interface function with digital out on AES)
Built in (MQA compliant filters and dithering)
Control panel w. one button HiRes recording
Mac or Win app enabling control of all settings from a computer via USB. Features one button simultanoeus maximum resolution PCM and DSD recording without a DAW and easy flash firmware upgrades.
<1ps jitter Mytek Femtoclock ™ generator. Wordclock I/O
Worldwide 30W power supply 100-240V 50/60 Hz. Optional 12VDC power input (2.5mm, inner +)
4 lbs (2kg) WxDxH=8.5” x 8.5” x 1U
We warrant that Synergy HiFi products, in the course of its normal use, will be free from defects in material and workmanship for a period of one year.
